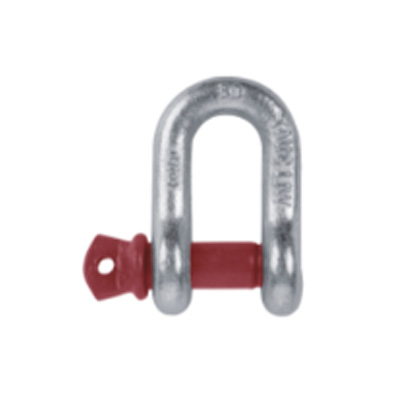

Tampok ng US TYPE High Tensile Forged Shackle G210US na uri
Material：45 #
Huwad na Bakal
Ultimate load：W.L.L * 4
Paggamot sa Ibabaw：Magkulay sa sarili, nakiusap ang Zinc, Mainit na isawsaw sa dalvan,
Trivalent chromium plating zinc, pulbos na patong
US TYPE High Tensile Forged Shackle G210 Tampok
Uri ng US
Material：45 #
Huwad na Bakal
Ultimate load：W.L.L * 4
Paggamot sa Ibabaw：Magkulay sa sarili, nakiusap ang Zinc, Mainit na isawsaw sa dalvan,
Trivalent chromium plating zinc, pulbos na patong
US TYPE High Tensile Forged Shackle G210Pagtutukoy
| Laki ng Nominal | Paggawa ng limitasyon sa pag-load (tonelada) | Dimensinons (mm) | Timbang bawat isa | ||||||||||
| A | B | C | D | E | F | G | H | I | M | ||||
| 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.05 | |
| 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.6 | 42.2 | 0.08 | |
| 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.13 | |
| 7/16 | 1-1 / 2 | 19.1 | 12.7 | 42.9 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.2 | |
| 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 46 | 30.2 | 41.4 | 77 | 9.65 | 68.5 | 0.27 | |
| 5/8 | 3-1 / 4 | 26.9 | 19.1 | 60.5 | 16 | 58.5 | 38.1 | 51 | 95.5 | 11.2 | 85 | 0.57 | |
| 3/4 | 4-3 / 4 | 31.8 | 22.4 | 71.5 | 19.1 | 70 | 46 | 60.5 | 115 | 12.7 | 101 | 1.2 | |
| 7/8 | 6-1 / 2 | 36.6 | 25.4 | 84 | 22.4 | 81 | 53 | 71.5 | 135 | 12.7 | 114 | 1.43 | |
| 1 | 8-1 / 2 | 42.9 | 28.7 | 95.5 | 25.4 | 93.5 | 60.5 | 81 | 151 | 14.2 | 129 | 2.15 | |
| 1-1 / 8 | 9-1 / 2 | 46 | 31.8 | 108 | 28.7 | 103 | 68.5 | 91 | 172 | 16 | 142 | 3.06 | |
| 1-1 / 4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 115 | 76 | 100 | 191 | 17.5 | 156 | 4.11 | |
| 1-3 / 8 | 13-1 / 2 | 57 | 38.1 | 133 | 35.1 | 127 | 84 | 111 | 210 | 19.1 | 174 | 5.28 | |
| 1-1 / 2 | 17 | 60.5 | 41.4 | 146 | 38.1 | 137 | 92 | 122 | 230 | 20.6 | 187 | 7.23 | |
| 1-3 / 4 | 25 | 73 | 51 | 178 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 12.1 | |
| 2 | 35 | 82.5 | 57 | 197 | 51 | 184 | 122 | 172 | 312 | 31 | 263 | 19.2 | |
| 2-1 / 2 | 55 | 105 | 70 | 267 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 | |
