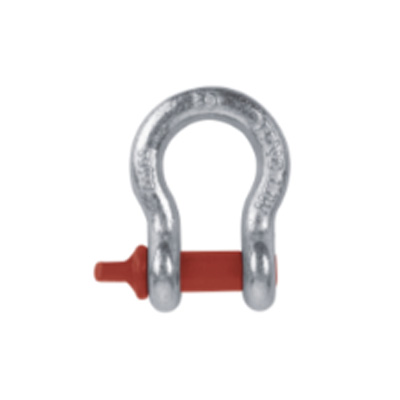

US TYPE High Tensile Forged Shackle G209

Tampok ng US TYPE High Tensile Forged Shackle G209US na uri
Materialï¼š45 #
Huwad na Bakal
Ultimate loadï¼šW.L.L * 4
Paggamot sa Ibabawï¼šMagkulay sa sarili, nakiusap ang Zinc, Mainit na isawsaw sa dalvan,
Trivalent chromium plating zinc, pulbos na patong

Magpadala ng Inquiry

Paglalarawan ng Produkto

US TYPE High Tensile Forged Shackle G209Tampok

Uri ng US
Materialï¼š45 #
Huwad na Bakal
Ultimate loadï¼šW.L.L * 4
Paggamot sa Ibabawï¼šMagkulay sa sarili, nakiusap ang Zinc, Mainit na isawsaw sa dalvan,
Trivalent chromium plating zinc, pulbos na patong

US TYPE High Tensile Forged Shackle G209 Pagtutukoy

Laki ng Nominal	Paggawa ng limitasyon sa pag-load (tonelada)	Dimensinons (mm)											Timbang bawat isa
Laki ng Nominal	Paggawa ng limitasyon sa pag-load (tonelada)	A	B	C	D	E	F	G	H	I	M	N	Timbang bawat isa
3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
5/16	3/4	135	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85	0.09
3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65	0.14
7/16	1-1 / 2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2	0.17
1/2	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
5/8	3-1 / 4	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5	0.62
3/4	4-3 / 4	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6	1.07
7/8	6-1 / 2	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6	1.64
1	8-1 / 2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
1-1 / 8	9-1 / 2	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8	3.36
1-1 / 4	12	51.5	35.1	119	32.8	92.5	76	146	210	17.5	156	35.1	4.31
1-3 / 8	13-1 / 2	57	38.1	133	36.1	92	84	162	233	19.1	174	38.1	6.14
1-1 / 2	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1	7.8
1-3 / 4	25	73	51	178	46.7	127	106	225	313	25.4	231	57	12.6
2	35	82.5	57	197	53	146	122	253	348	31	263	61	20.4
2-1 / 2	55	105	70	267	69	184	145	327	453	35.1	330	79.5	98.9
